LED gas station price signs are widely used for fuel price display in petrol stations,roadside service areas, and commercial fuel stations. Different sign sizes and digit dimensions are suitable for different installation environments and visibility requirements. This guide provides standard size specifications, display options, and customization information for outdoor LED fuel price displays.
Recommended Features
High brightness outdoor LED display
Waterproof design for all-weather use
Multiple digit size options available
Remote control and wireless updating
Custom colors and cabinet sizes supported
Suitable for gas stations and fuel service areas
①MODEL SPECIFICATIONS(8.889/10)
Model Number | Character Height | Products Dimensions Inch (HxWxT) Aluminum frame Iron cabinet | Max.Watts Per Face(W) | Net Weight Pounds A I | ||
OD-12"+6''-GS-8.889/10-A (I) | 12" | 39.37x17.8x2.96 | 39.37x17.8x3.75 | 75 | 15 | 35 |
OD-15"+6''-GS-8.889/10-A (I) | 15" | 43.7x19.69x2.96 | 43.7x19.69x3.75 | 87 | 18 | 42 |
OD-18"+8''-GS-8.889/10-A (I) | 18" | 51.97x23.62x2.96 | 51.97x23.62x3.75 | 127 | 26 | 62 |
OD-20"+8''-GS-8.889/10-A (I) | 20" | 57.09x25.59x2.96 | 57.09x25.59x3.75 | 143 | 31 | 73 |
OD-22"+10''-GS-8.889/10-A (I) | 22" | 62.2x28.35x2.96 | 62.2x28.35x3.75 | 187 | 37 | 88 |
OD-24"+10''-GS-8.889/10-A (I) | 24" | 66.93x29.53x2.96 | 66.93x29.53x3.75 | 209 | 42 | 99 |
PS: OD=OUTDOOR GS=GAS SIGN R=RED,LED 'color 12''=Character Height 8.889/10=price format | ||||||

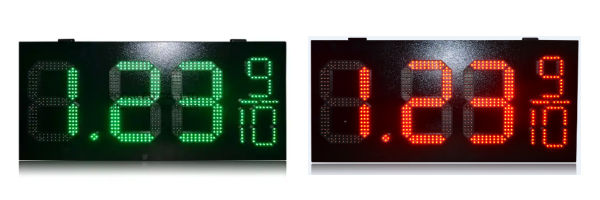

Pic. American-style oil price sign with iron cabinet

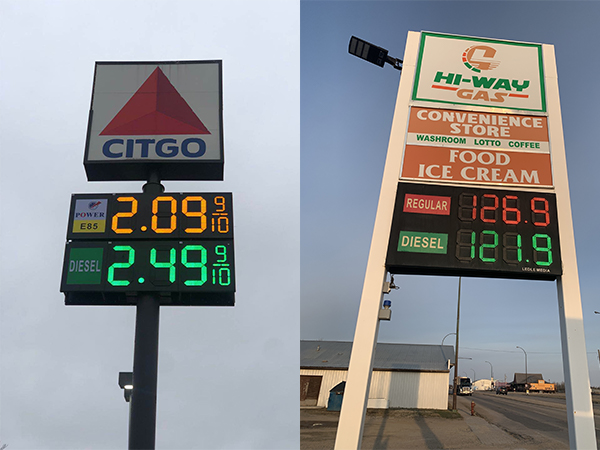

Pic. Installation renderings
②MODEL SPECIFICATIONS(8.889/10 with Lighting Box/Channel Letters/Cash&Credit)
Model Number | Character Height | Products Dimensions Inch | Products Dimensions Centi Meters (HxWxT) | Max.Watts Per Face(W) | Net Weight Pounds(kg) | Lighting box/Channel Letters | CASH&CREDIT |
OD-GS-R/G-12''+6"-8.889/10-T(B) | 12" | 39.37×23.62×3.74 | 100×60×9.5 | 97 | 46(21) | Lighting box | NO |
OD-GS-R/G-12''+6"-8.889/10-R(L) | 12" | 49.21×16.14×3.74 | 125×41×9.5 | 99 | 39(18) | Lighting box | NO |
OD-GS-R/G-15''+6"-8.889/10-T(B) | 15" | 43.7×25.59×3.74 | 111×65×9.5 | 114 | 56(25) | Lighting box | NO |
OD-GS-R/G-15''+6"-8.889/10-R(L) | 15" | 59.45×17.72×3.74 | 151×45×9.5 | 118 | 52(23) | Lighting box | NO |
OD-GS-R/G-18''+8"-8.889/10-T(B) | 18" | 51.97×29.13×3.74 | 132×74×9.5 | 162 | 75(34) | Lighting box | NO |
OD-GS-R/G-18''+8"-8.889/10-R(L) | 18" | 65.35×20.47×3.74 | 166×52×9.5 | 166 | 67(30) | Lighting box | NO |
OD-GS-R/G-20''+8"-8.889/10-T(B) | 20" | 55.91×31.89×3.74 | 142×81×9.5 | 195 | 89(40) | Lighting box | NO |
OD-GS-R/G-20''+8"-8.889/10-R(L) | 20" | 74.02×22.83×3.74 | 188×58×9.5 | 191 | 84(38) | Lighting box | NO |
OD-GS-R/G-15''-8.889/10 -T(B)-CC | 15" | 47.24×29.53×3.74 | 120×75×9.5 | 90 | 63(29) | NO | YES |
OD-GS-R/G-18''-8.889/10-T(B) -CC | 18" | 51.97×31.5×3.74 | 132×80 ×9.5 | 80 | 74(33.5) | NO | YES |
OD-GS-R/G-24''-8.889/10-T(B) -CC | 24" | 66.93×37.4×3.74 | 170×95×9.5 | 200 | 113(51) | NO | YES |
OD-GS-R/G-18''-8.889/10 -R(L)-CC | 18" | 66.14×51.97×3.74 | 168×132×9.5 | 120 | 155(70) | Lighting box | YES |
OD-GS-R/G-72'-8.889/10-T(B)-CC | 72" | 250×129.92×4.72 | 635×330×12 | 1260 | 1958(888) | Channel letters | YES |
PS: BS=BRIGHT SIGN GS=GAS SIGN R=RED,LED's color 15''=Character Height 8.889/10=Price Format T(L)/R(L)=Lightint Box in Top/Left/Right CC=CASH&CREDIT | |||||||

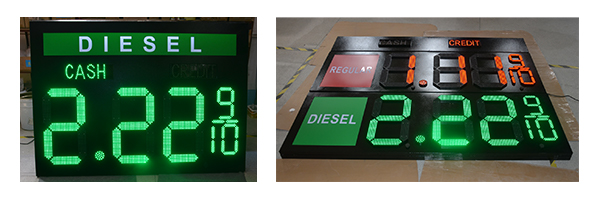

Pic. American-style oil price sign with ligthting box/ cash&credit

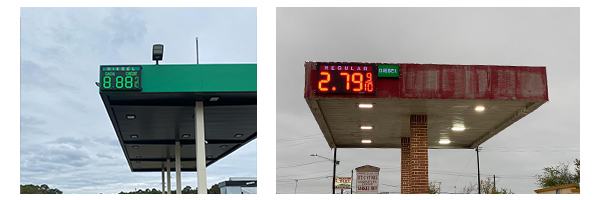

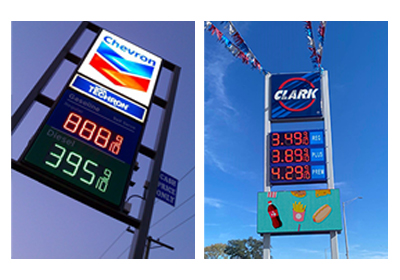

Pic. Installation renderings
③MODEL SPECIFICATIONS(8888)
Model Number | Character Height | Products Dimensions Inch (HxWxT) | Max.Watts Per Face(W) | Net Weight Pounds(kg) | ||
Aluminum frame | Iron cabinet | A | I | |||
OD-8"-GS-88.88（8.888）-A(I) | 8" | 28.35×12.21×2.69 | 28.35×12.21×3.75 | 53 | 7 | 18 |
OD-10"-GS-88.88（8.888）-A(I) | 10" | 34.26×14.18×2.69 | 34.26×14.18×3.75 | 67 | 11 | 24 |
OD-12"-GS-88.88（8.888）-A(I) | 12" | 37.8×16.93×2.69 | 37.8×16.93×3.75 | 80 | 13 | 31 |
OD-15"-GS-88.88（8.888）-A(I) | 15" | 48.04×19.69×2.69 | 48.04×19.69×3.75 | 96 | 20 | 46 |
OD-18"-GS-88.88（8.888）-A(I) | 18" | 55.91×22.45×2.69 | 55.91×22.45×3.75 | 139 | 26 | 62 |
OD-20"-GS-88.88（8.888）-A(I) | 20" | 68.9×25.6×2.69 | 68.9×25.6×3.75 | 160 | 37 | 88 |
OD-22"-GS-88.88（8.888）-A(I) | 22" | 68.9×26.78×2.69 | 68.9×26.78×3.75 | 211 | 40 | 93 |
PS: OD=OUTDOOR GS=GAS SIGN R=RED,LED 'color 12''=Character Height 88.88=price format | ||||||

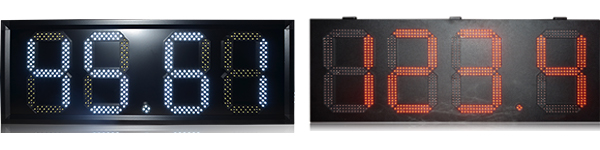

Pic. LED digital oil price sign

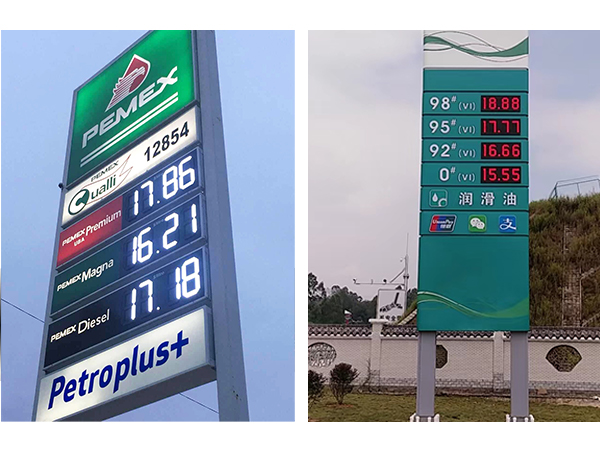

Pic. Installation renderings
Notes
Custom dimensions are available upon request.
Different control methods are available for local or remote operation.
