| LED Chips parameter | ||||||||
| Color | Brightness | Wave Length | Current | Operating Voltage | Viewing angel | LED Chips size | Color temperature | Luminous flux |
| RED | 4000mcd | 620-630 | 60MA | 1.9-2.4V | 60°/120° /180° | 10*20Mil | 620-630K | 2LM |
| GREEN | 10000mcd | 515-525 | 3.0-3.4V | 515-525K | 3LM | |||
| BLUE | 8000mcd | 515-525 | 2.5-3.0V | 460-470K | 3LM | |||
| YELLOW | 3500mcd | 585-590 | 1.9-2.2V | 588-595K | 1.5LM | |||
| WHITE | 12000mcd | 0 | 3.0-3.4V | 6000-7000K | 5LM | |||
| SERIES PARAMETERS | |||||||
| Item | Technical Parameters | ||||||
| Color: | Red, Amber, Green, Blue, White | ||||||
| Digit Height: | 6'', 8'', 10'', 12'', 15'', 18'', 20'', 22'', 24'', 32'', 64'', 72'' | ||||||
| Digit Design: | 7 segments modules are sealed with glue,reach IP67 waterproof grade,with dust shade that make leds work normally all the time. | ||||||
| Brightness Control: | Auto dimming by brightness sensor | ||||||
| Display Dimming: | Over 8 levels of automatic intensity adjustment | ||||||
| Viewing Angle: | Horizontal:60°-120°,Vertical: 60°-120° or customized | ||||||
| Service Access: | Front or rear open | ||||||
| Master/slave: | Single sided or double sided, master/slaves available | ||||||
| Cabinet Material: | Iron cabinet or aluminum alloy frame | ||||||
| Waterproof Level: | IP53 with aluminum alloy frame, IP53 with iron cabinet | ||||||
| Led Driving Mode: | Constant current | ||||||
| Power Input: | 110/220V AC,50-60HZ | ||||||
| PC Communication: | RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose | ||||||
| Communication Distance: | Max.15 meters for RS232, 1200 meters for RS485 | ||||||
| Remote Control Type: | RF remote control (Normal 6 buttons or LCD remote controller) | ||||||
| Continuous Working Time: | Unlimited | ||||||
| Lifetime of Leds: | >100,000 hours | ||||||
| Installation Method: | Hanging,mounting or per custom design | ||||||
| Working Temperature: | -40℃~75℃ | ||||||
| Display Format: | 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc. | ||||||

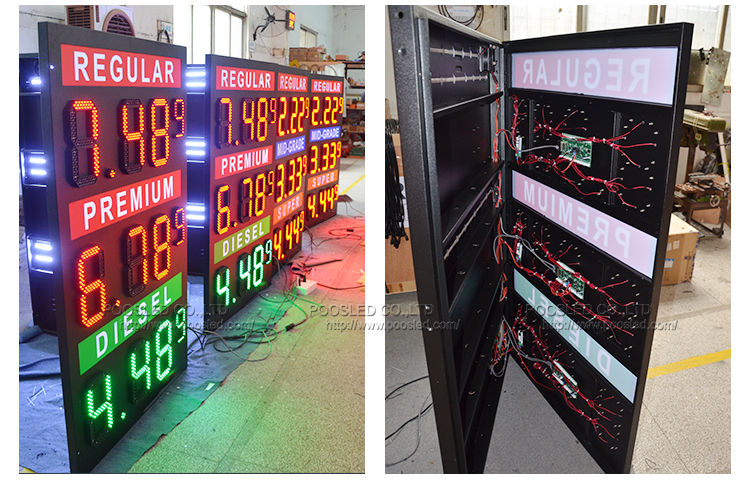

led gas price sign,gas station led price sign,led oil price sign
