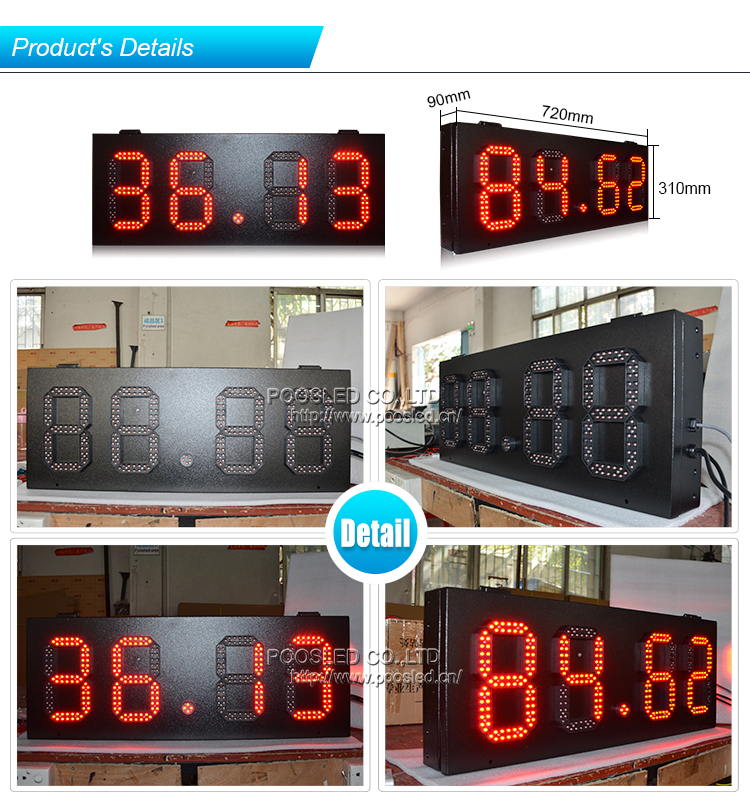

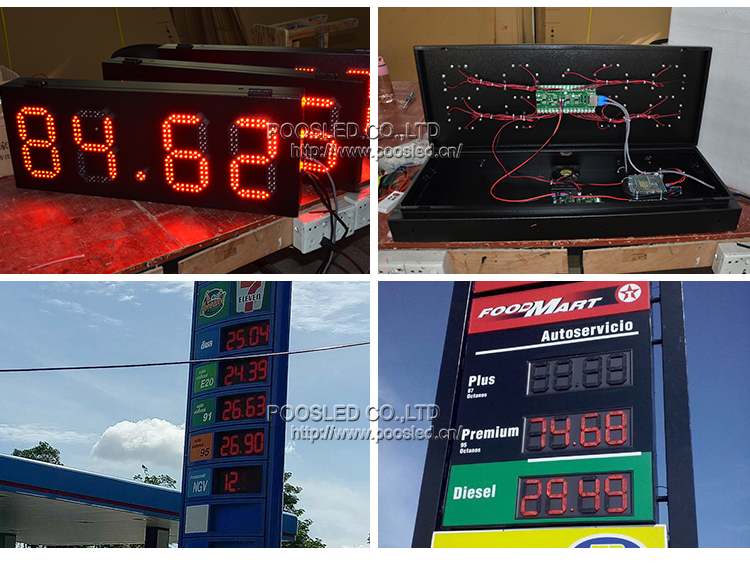

Morocco Outdoor Waterproof Cabinet 8 Inch Single Red 88.88 Led Price Gas Station

LED Module
LED Chips parameter
Color Brightness Wave Length Current Operating
Voltage
Viewing angel LED
Chips size
Color
temperature
Luminous flux
RED 4000mcd 620-630 60MA 1.9-2.4V 60°/120°
/180°
10*20Mil 620-630K 2LM
GREEN 10000mcd 515-525 3.0-3.4V 515-525K 3LM
BLUE 8000mcd 515-525 2.5-3.0V 460-470K 3LM
YELLOW 3500mcd 585-590 1.9-2.2V 588-595K 1.5LM
WHITE 12000mcd 0 3.0-3.4V 6000-7000K 5LM



SERIES PARAMETERS
SERIES PARAMETERS
Item Technical Parameters
Color: Red, Amber, Green, Blue, White
Digit Height: 6'', 8'', 10'', 12'', 15'', 18'', 20'', 22'', 24'', 32'', 64'', 72''
Digit Design:

7 segments modules are sealed with glue,reach IP67 waterproof grade,with

dust shade that make leds work normally all the time.

Brightness Control: Auto dimming by brightness sensor
Display Dimming: Over 8 levels of automatic intensity adjustment
Viewing Angle: Horizontal:60°-120°,Vertical: 60°-120° or customized
Service Access: Front or rear open
Master/slave: Single sided or double sided, master/slaves available
Cabinet Material: Iron cabinet or aluminum alloy frame
Waterproof Level: IP53 with aluminum alloy frame, IP65 with iron cabinet
Led Driving Mode: Constant current
Power Input: 110/220V AC,50-60HZ
PC Communication: RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose
Communication Distance: Max.15 meters for RS232, 1200 meters for RS485
Remote Control Type: RF remote control (Normal 6 buttons or LCD remote controller)
Continuous Working Time: Unlimited
Lifetime of Leds: >100,000 hours
Installation Method: Hanging,mounting or per custom design
Working Temperature: -40℃~75℃
Display Format: 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc.


Control Way


Install way
