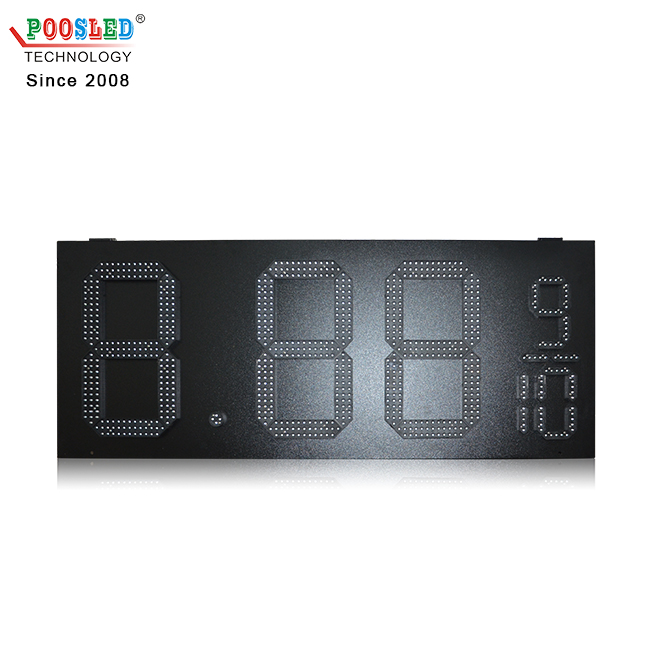

High Cost Performance Outdoor IP53 Green 15'' 8.88 9/10 Gas Station Led Sign

Availability:
LED Module
LED Chips parameter
Color Brightness Wave Length Current Operating
Voltage
Viewing angel LED
Chips size
Color
temperature
Luminous flux
RED 4000mcd 620-630 60MA 1.9-2.4V 60°/120°
/180°
10*20Mil 620-630K 2LM
GREEN 10000mcd 515-525 3.0-3.4V 515-525K 3LM
BLUE 8000mcd 515-525 2.5-3.0V 460-470K 3LM
YELLOW 3500mcd 585-590 1.9-2.2V 588-595K 1.5LM
WHITE 12000mcd 0 3.0-3.4V 6000-7000K 5LM



SERIES PARAMETERS
SERIES PARAMETERS
Item Technical Parameters
Color: Red, Amber, Green, Blue, White
Digit Height: 6'', 8'', 10'', 12'', 15'', 18'', 20'', 22'', 24'', 32'', 64'', 72''
Digit Design:

7 segments modules are sealed with glue,reach IP67 waterproof grade,with

dust shade that make leds work normally all the time.

Brightness Control: Auto dimming by brightness sensor
Display Dimming: Over 8 levels of automatic intensity adjustment
Viewing Angle: Horizontal:60°-120°,Vertical: 60°-120° or customized
Service Access: Front or rear open
Master/slave: Single sided or double sided, master/slaves available
Cabinet Material: Iron cabinet or aluminum alloy frame
Waterproof Level: IP53 with aluminum alloy frame, IP53 with iron cabinet
Led Driving Mode: Constant current
Power Input: 110/220V AC,50-60HZ
PC Communication: RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose
Communication Distance: Max.15 meters for RS232, 1200 meters for RS485
Remote Control Type: RF remote control (Normal 6 buttons or LCD remote controller)
Continuous Working Time: Unlimited
Lifetime of Leds: >100,000 hours
Installation Method: Hanging,mounting or per custom design
Working Temperature: -40℃~75℃
Display Format: 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc.



Product Description


Control Way



Install way


Company Information

Packaging & Shipping

led gas sign,gas station led display,wireless control led price display,2 years warranty ip53 led gas price
