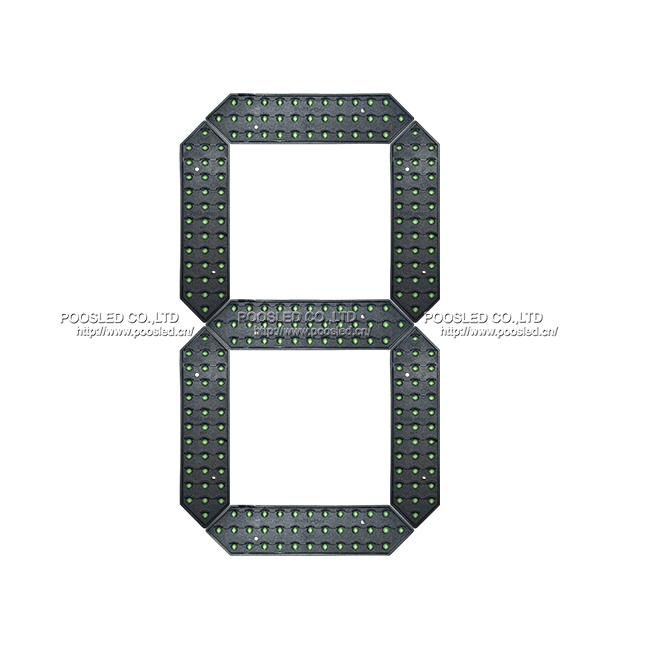

15 Inch Green 7 Segment Led Display

Availability:
LED Module
LED Chips parameter
Color Brightness Wave Length Current Operating
Voltage
Viewing angel LED
Chips size
Color
temperature
Luminous flux
RED 4000mcd 620-630 60MA 1.9-2.4V 60°/120°
/180°
10*20Mil 620-630K 2LM
GREEN 10000mcd 515-525 3.0-3.4V 515-525K 3LM
BLUE 8000mcd 515-525 2.5-3.0V 460-470K 3LM
YELLOW 3500mcd 585-590 1.9-2.2V 588-595K 1.5LM
WHITE 12000mcd 0 3.0-3.4V 6000-7000K 5LM

modules paramete 1

Module Per number
Item LED Color

Input

Voltage

Output Voltage

Power

(Wats)

Current

(mA)

Number's

size(mm)

N.W(g)

Lamps'

quantity

D6" Red/ Green/ Blue/ Yellow/ White/ Tri-color (RG) DC-12V AC110V/220V 2.6 217 85*160 140 35
D8" 4 333 120*210 210 84
D10" 6.5 542 150*260 280 133
D12" 9 750 170*310 460 182

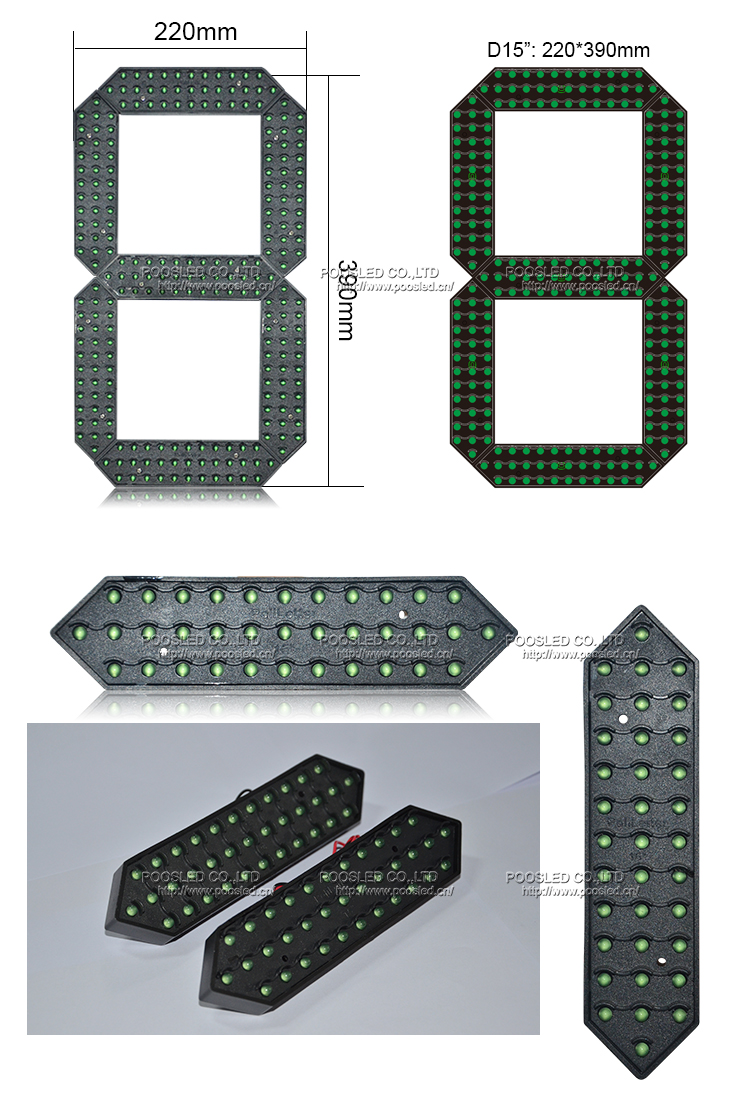

D15" 12 1000 220*390 560 245
D18" 17 1417 250*460 1200 364
D20" 21 1750 300*508 2200 434

7 segment led display7 segment Led ModuleLed 7 Segment15 Inch Green Color Digital Numbers Module 7 Segment LED DisplayOutdoor IP65 15 inch Led Seven Segment ModuleWholesale Outdoor Large 7 segment led display usage led segment


Free Sample 7 Segment Large Display Led 7 SegmentGas Station Using 7 Segments Led Display15 Inch Led 7 Segment Electronic Outdoor Led Banner DisplaySuper Bright White 15 Inch Large 7 Segment Led Display
